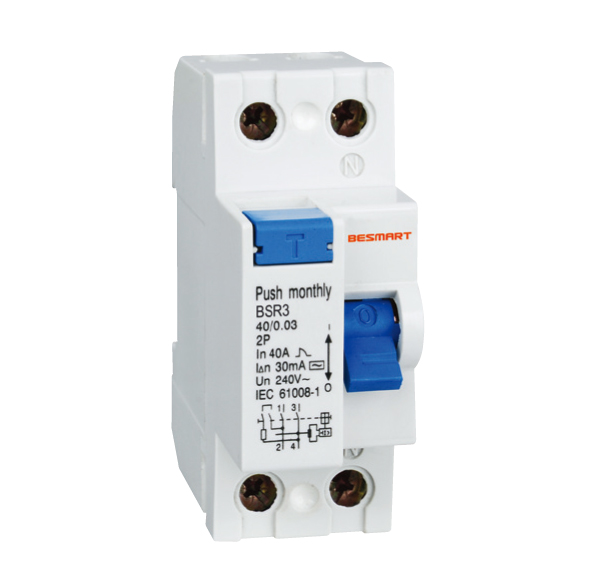

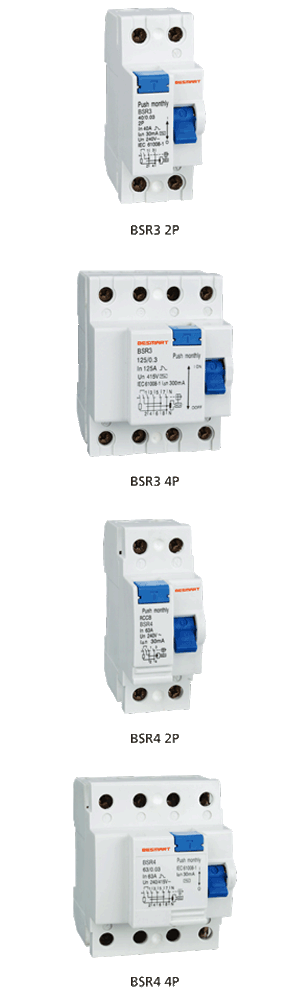

BSR3/BSR4

BSR3/BSR4

Introduction


Specification and Feature

■ Provides protection against earth fault/leakage current and function of isolation
■ High breaking current withstand capacity
■ Applicable to terminal and pin/fork type busbar connection
■ Fire resistant plastic parts endures abnormal heating and strong impact
■ Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
■ Independent of power supply and line voltage, and free from external interference, voltage fluctuation

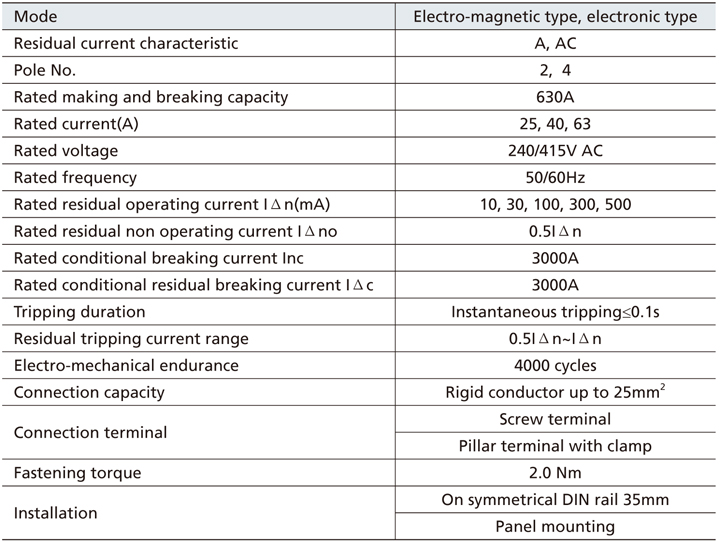

Technical Data

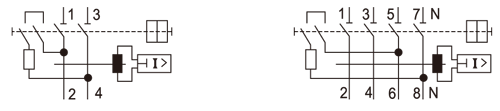

Wiring Diagram

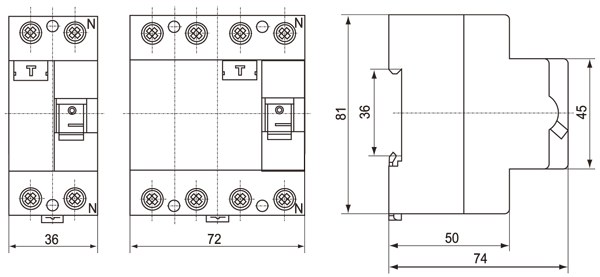

Overall & Installation Dimensions
