Introduction

Display:99999.99

Voltage:DC 12V, 24V; AC110V,220V,380V

Frequency:50Hz or 60Hz





Accuuray:class 1.5

Specification:100uA 150uA 500uA 1mA 2mA 5mA 10mA 20mA 30mA 50mA 75mA 100mA 150mA 200mA 250mA 300mA 500mA 1A 2A 3A 7.5A 10A 15A, over 15A, over 15A with external 50mV, 60mV or 75mV shut.

Accuuray:class 1.5

Specification:50mV 60mV 75mV 100mV 3V 5V 7.5V 10V 15V 20V 30V 50V 75V 100V 120V 150V 200V 300V 400V 450V 500V 600V, over 600V whith external resistor (rated current 5mA)

Accuracy:class 2.5

Voltage(three phase):110V,220V,380V,415V,440V/5A or 1A

Voltage(singlge phase):110V, 220V/5A or 1A

Frequency:50Hz or 60Hz

Specification:0.5cap-1-0.5ind, 0.4cap-1-0.4ind

Accuracy:class 1.5

Voltage(three phase three wire):100V, 110V, 220V(balance or unbalance)

Voltage(three phase three wire):110V,110V,220V,380V,415V(balance or unbalance)

Current if the current is over 10A, the current circuits have to be connected current transformer, which secondary current is 5A or 1A. if the current is not over 10A, it can be connected directly according to actual current.

Frequency:50Hz or 60Hz

Specification:100W,200W…1KW,2KW…1MW,2MW…6MW

Accuracy:class 1.0

Voltage:110V,220V,380V,415V,440V

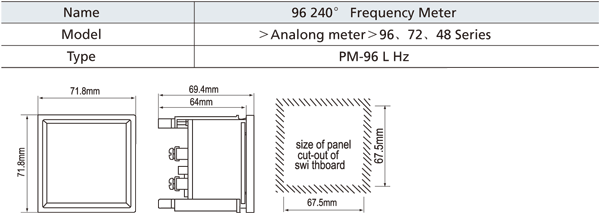

Frequency:45-55Hz,45-65Hz,55-65Hz,47-53Hz,57-63Hz

Display:99999.99

Voltage:DC 12V, 24V; AC 110V, 220V, 380V

Frequency:50Hz or 60Hz

Accuracy:class 3.0

Specification:8min 5A, 15min 5A, 30min 5A, 8min 1A, 15min 1A and 30min 1A (If internal value is same, the dial plate can be changeble according to current transformer and the accuracy is same.)

Accuracy:class 1.5

Specification:50uA 100uA 150uA 500uA 1mA 2mA 5mA 10mA 20mA 30mA 50mA 75mA 100mA 150mA 200mA 250mA 300mA 500mA 1A 2A 3A 7.5A 10A 20A 30A 50A 60A, if measuring ranges over 60A, meters can be connected external shunt with 50mV, 60mV or 75mV

Accuracy:class 1.5

Specification:50mV 60mV 75mV 100mV 3V 5V 7.5V 10V 15V 20V 30V 50V 75V 100V 120V 150V 200V 250V 300V 400V 450V 500V 600V, measuring ranges over 600V with external resistor(rated current 5mA)

Accuracy:class 1.5

Voltage:0.1A 0.5A 1A 1.5A 3A 5A 7.5A 10A 15A, over 15A, meters can be contacted external current transformer, which secondary current is 5A or 1A

Accuracy:class 1.5 (over 60A class 2.5)

Specification:0.5A 1A 1.5A 3A 5A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 80 100A, if over 100A, meters can be contacted current transformer with secondary current 5A or 1A

Accuracy:class 1.5

Specification:30V 50V 75V 100V 120V 150V 200V 250V 450V 500V 600V, if over 600V, meters can be connected potential transformer with secondary voltage 100V

Accuracy:class 2.5

Voltage(three phase):100V, 110V, 220V, 380V, 415V, 440V/5A or 1A

Voltage(single phase):110V, 220V/5A or 1A

Frequency:50Hz or 60Hz

Specification:0.5cap-1-0.5ind, 0.4cap-1-0.4ind

Accuracy:class 1.5

Voltage(three phase three wire):100V, 110V, 220V(balance or unbalance)

Voltage(three phase four wire):100V, 110V, 220V, 380V, 415V(balance or unbalance)

Current:if the current is over 10A, the current circuits have to be connected current transformer, which secondary current is 5A or 1A. if the current is not over 10A, it can be connected directly according to actual current.

Frequency:50Hz or 60Hz

Specification:100W, 200W…1KW, 2KW…1MW, 2MW…6MW

Accuracy:class 1.0

Voltage:110V,220V,380V,415V,440V

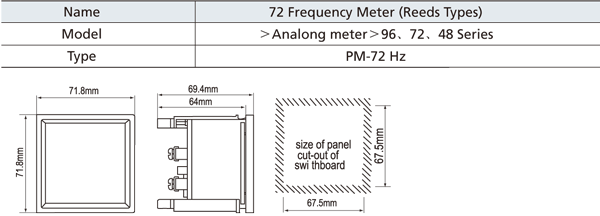

Frequency:45-55Hz,45-65Hz,55-65Hz,47-53Hz,57-63Hz,450-550Hz, 450-650Hz, 550-650Hz

Accuracy:class 1.5

Specification:50mA 60mA 75mA 100mA 3V 5V 7.5V 10V 15V 20V 30V 50V 75V 100V 120V 150V 200V 300V 400V 450V 500V 600V, over 600V with external resistor (rated current 5mA)

Accuracy:class 2.5

Voltage(three phase):110V, 220V, 380V, 415V, 440V/5A or 1A

Voltage(single phase):110V, 220V/5A or 1A

Frequency:50H or 60Hz

Specification:0.5cap-1-0.5ind, 0.4cap-1-0.4ind

Accuracy:class 1.0

Voltage:110V, 220V, 380V, 415V, 440V

Frequency:45-55Hz, 45-65Hz, 55-65Hz, 47-53Hz, 57-63Hz

Accuracy:class 1.5

Voltage(three phase three wire):100V, 110V, 220V(balance or unbalance)

Voltage(three phase four wire):100V, 110V, 220V, 380V, 415V(balance or unbalance)

Current:if the current is over 10A, the current circuits have to be connected current transformer, which secondary current is 5A or 1A. if the current is not over 10A, it can be connected directly according to actual current.

Frequency:50Hz or 60Hz

Specification:100W, 200W…1KW, 2KW…1MW, 2MW…6MW

Display:99999.99

Voltage:DC 12V, 24V; AC110V, 220V, 380V

Frequency:50Hz or 60Hz

Accuracy:class 3.0 (instantaneous values class 1.5)

Specification:8min 5A, 15min 5A, 30min 5A, 8min 1A, 15min 1A and 30min 1A (If internal value is same, the dial plate can be changebel according to current transformer and the accuracy is same.)

Accuracy:class 3.0

Specification:8min 5A, 15min 5A, 30min 5A, 8min 1A, 15min 1A and 30min 1A (If internal value is same, the dial plate can be changebel according to current transformer and the accuracy is same.)

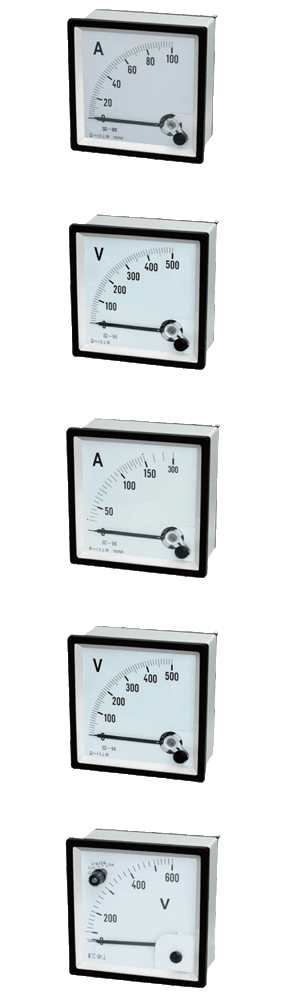

Accuracy:class 1.5

Specification:50uA 100uA 150uA 500uA 1mA 2mA 5mA 10mA 20mA 30mA 50mA 75mA 100mA 150mA 200mA 250mA 300mA 500mA 1A 2A 3A 7.5A 10A 20A 30A 50A 60A, if measuring ranges over 60A, meters can be connected external shunt with 50mV, 60mA OR 75mA

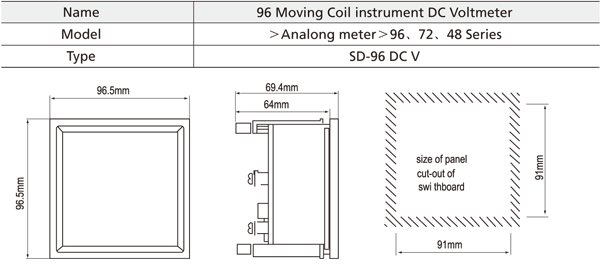

Accuracy:class 1.5

Specification:50mV 60mV 75mV 100mV 3V 5V 7.5V 10V 15V 20V 30V 50V 75V 100V 120V 150V 200V 250V 300V 400V 450V 500V 600V, measuring ranges over 600V with external resistor (rated current 5mA)

Accuracy:class 1.5

Specification:10V 20V 30V 50V 75V 100V 120V 250V 300V 400V 450V 500V 600V, if over 600V, meters can be connected potential transformer with secondary voltage 100V

Accuracy:class 1.5

Specification:0.5A 1A 1.5A 3A 5A 7.5A 10A 15A 20A 25A 30A 40A 50A 60A 80A 100A, if over 100A, meters can be contacted current transformer with secondary current 5A or 1A

Accuracy:class 1.5

Specification:30V 50V 75V 100V 120V 150V 200V 250V 450V 500V 600V, if over 600V, meters can be connected potential transformer with secondary voltage 100V

Accuracy:class 1.5

Specification:100V, 150V, 200V, 250V, 300V, 500Vand 600V, if over 600V, meters can be connected potential transformer with secondary voltage 100V

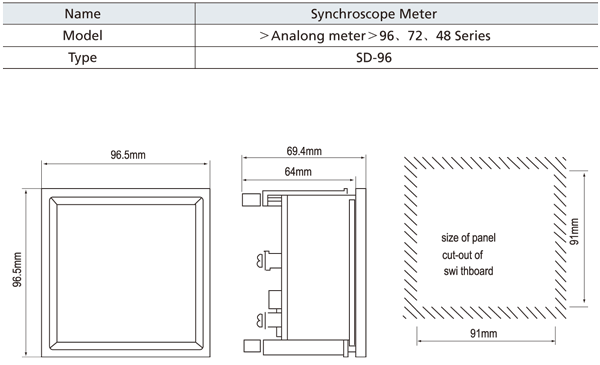

Three phase four wire position:L3-N, L2-N, L1-N, L1-L2, L2-L3, L3-L1

Accuracy: class 1.5

Voltage(three phase three wire):100V, 110V, 220V(balance or unbalance)

Voltage(three phase four wire):100V, 110V, 220V, 380V, 415V(balance or unbalance)

Current:if the current is over 10A, the current circuits have to be connected current transformer, which secondary current is 5A or 1A. If the current is not over 10A, it can be connected directly according to actual current.

Frequency:50Hz or 60Hz

Specification:100W, 200W…1KW, 2KW…1MW, 2MW…6MW

Accuracy:class 1.5

Specification:100uA 15uA 500uA 1mA 2mA 5mA 10mA 20mA 30mA 50mA 75mA 100mA 150mA 200mA 250mA 300mA 500mA 1A 2A 3A 7.5A 10A 15A, over 15A with external 50mV, 60mV or 75mV shut
