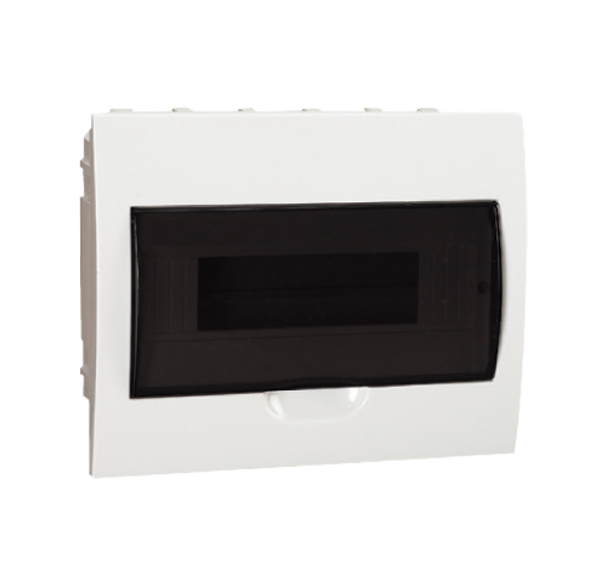

       The distribution box is suitable for mounting of modular electric installation devices withmaximum current up to 63A. the product, available with neutral and earth terminal block, Din rail function label is widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.


Technical Data
■ Model:
□ Flush mounting type (F)
■ Arc door classification:
□ Transparent (T)
□ Non-transparent (N)
■ Door open direction: 90 degree upward
■ Rated current:
□ 1 way to 4 modules maximum 50A
□ 6 way to 45 modules maximum 63A
■ Materials: ABS of fire-resistant , PC, PP
■ Protection degree: IP40
■ Blank module: used to fill the empty, good for dust-proof and fix purpose.


Overall & Installation Dimensions
