Copper Busbar

Copper Busbar

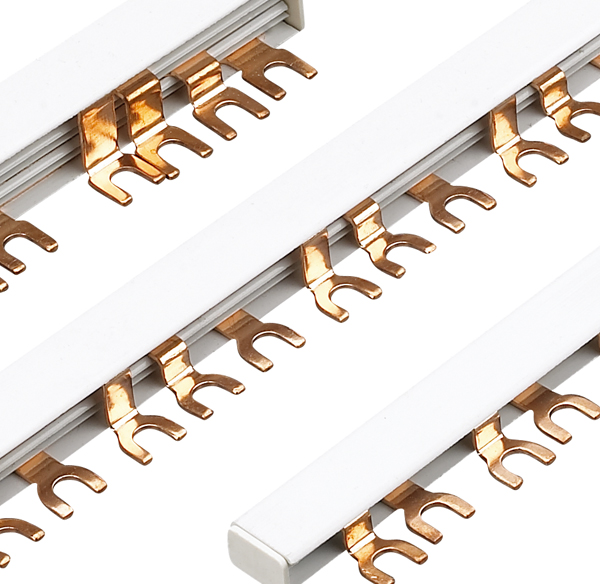

       Busbar of pin and fork type ensures reliable and efficient terminal connection to MCB, RCCB and other modular electric devices.


Specification and Feature

■ Standard segmented connecting pin saves labour tremendously
■ High purified copper used to ensure perfect electricity conductivity
■ Fire resistant material endures abnormal heating
Technical Data
Busbar 1P+N
■ Shape: pin type
■ Rated current: 32A
■ Rated insulating voltage: 500V AC
■ Flammability of plastic part : class 1
Busbar 1P, 2P, 3P, 4P
■ Shape: pin type, fork type
■ Rated current: 63, 125A
■ Rated insulating voltage: 500V AC
■ Flammability of plastic part: class 1
End Cap
■ Adaptable to full range busbars
■ Used to insulate the exposed
 living parts at both ends of busbar

Terminal Adaptor
■ Applicable to busbar for terminal
■ Fixed on busbar insulating part
    to secure high reliability
■ Connection capacity: 25mm2


Busbar 1P+N

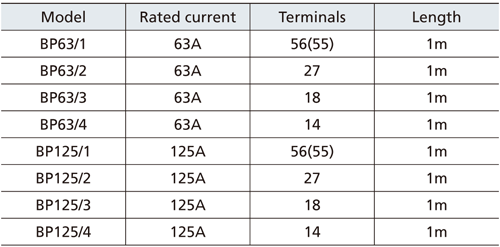

Busbar pin type 1P, 2P, 3P, 4P

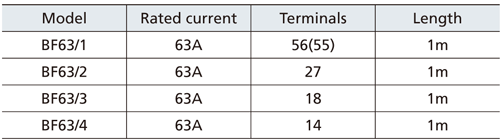

Busbar fork type 1P, 2P, 3P, 4P


End Cap
■ BC1        ■ BC3
■ BC2        ■ BC3
Terminal Adaptor
■ BA1
