■ Provides protection against earth fault/leakage current and function of isolation
■ High breaking current withstand capacity
■ Contact position indication
■ Equipped with finger protected connection terminals
■ Fire resistant plastic parts endures abnormal heating and strong impact
■ Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
■ Independent of power supply and line voltage, and free from external interference, voltage fluctuationV

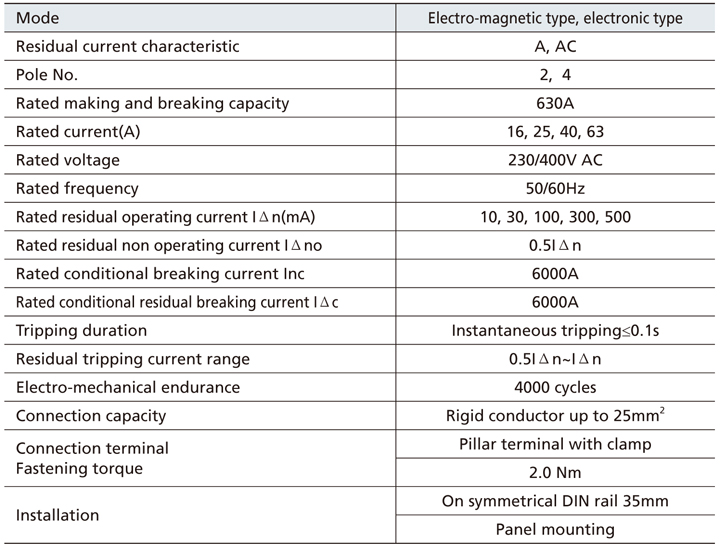

Technical Data
Wiring Diagram

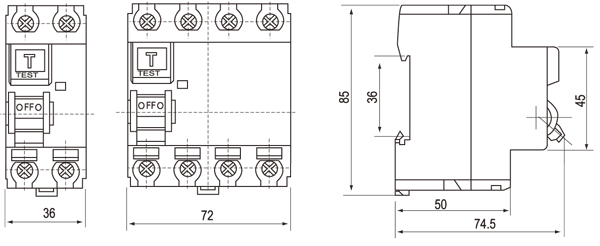

Overall & Installation Dimensions
 |
：
